Spools and make-up
We are able to provide a wide range of different spools and tubes; which meet our customer needs.
If you would like to save transport cost as well as cost and space of warehousing please contact us.

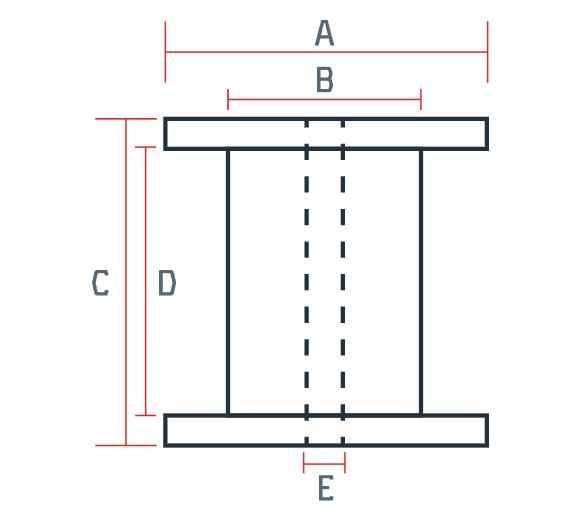

contact usFlanged spools
TECHNICAL DATA SHEET
TYPE
DIMENSIONS
DIN 500
A = WIDTH
500 mm
B = INTERNAL WIDTH
250 mm
C = HEIGHT
330 mm
D = INTERNAL HEIGHT
300 mm
E = INNER HOLE
40 mm
DIN 400
A = WIDTH
400 mm
B = INTERNAL WIDTH
200 mm
C = HEIGHT
230 mm
D = INTERNAL HEIGHT
200 mm
E = INNER HOLE
32 mm
DIN 355
A = WIDTH
355 mm
B = INTERNAL WIDTH
229 mm
C = HEIGHT
200 mm
D = INTERNAL HEIGHT
160 mm
E = INNER HOLE
35 mm
DIN 335
A = WIDTH
335 mm
B = INTERNAL WIDTH
190 mm
C = HEIGHT
245 mm
D = INTERNAL HEIGHT
215 mm
E = INNER HOLE
180/22 mm
DIN 250
A = WIDTH
250 mm
B = INTERNAL WIDTH
160 mm
C = HEIGHT
200 mm
D = INTERNAL HEIGHT
160 mm
E = INNER HOLE
22 mm
DIN 250K
A = WIDTH
250 mm
B = INTERNAL WIDTH
160 mm
C = HEIGHT
377.5 mm
D = INTERNAL HEIGHT
335 mm
E = INNER HOLE
30.8 mm
DIN 200
A = WIDTH
200 mm
B = INTERNAL WIDTH
120 mm
C = HEIGHT
200 mm
D = INTERNAL HEIGHT
160 mm
E = INNER HOLE
22 mm
DIN 160
A = WIDTH
160 mm
B = INTERNAL WIDTH
100 mm
C = HEIGHT
160 mm
D = INTERNAL HEIGHT
128 mm
E = INNER HOLE
22 mm
ROCAN 400
A = WIDTH
90 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
165 mm
D = INTERNAL HEIGHT
155 mm
E = INNER HOLE
20 mm
ROCAN 400 L
A = WIDTH
90 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
228 mm
D = INTERNAL HEIGHT
217 mm
E = INNER HOLE
20 mm
ROCAN 600
A = WIDTH
95 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
165 mm
D = INTERNAL HEIGHT
155 mm
E = INNER HOLE
20 mm
ROCAN 600 L
A = WIDTH
95 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
228 mm
D = INTERNAL HEIGHT
217 mm
E = INNER HOLE
20 mm
ROCAN 800
A = WIDTH
111 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
165 mm
D = INTERNAL HEIGHT
155 mm
E = INNER HOLE
20 mm
ROCAN 800 L
A = WIDTH
111 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
228 mm
D = INTERNAL HEIGHT
217 mm
E = INNER HOLE
20 mm

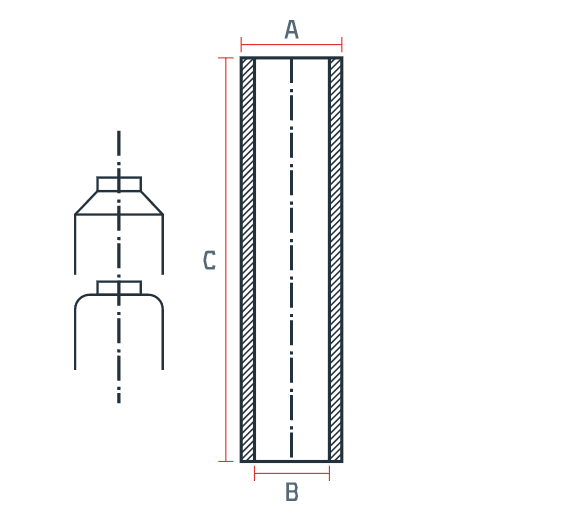

Cops
TECHNICAL DATA SHEET
TYPE
DIMENSIONS
C 330
A = WIDTH
18 mm
B = INTERNAL WIDTH
80 mm
C = HEIGHT
330 mm
T 330
A = WIDTH
75 mm
B = INTERNAL WIDTH
85 mm
C = HEIGHT
330 mm
T 380
A = WIDTH
75 mm
B = INTERNAL WIDTH
85 mm
C = HEIGHT
380 mm

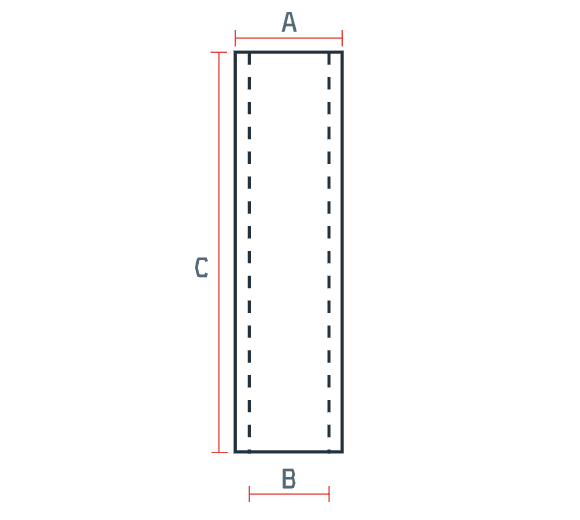

Dyeing spools
TECHNICAL DATA SHEET
TYPE
DIMENSIONS
DYEING SPOOLS
A = WIDTH
62 mm
B = INTERNAL WIDTH
57 mm
C = HEIGHT
200-230 mm

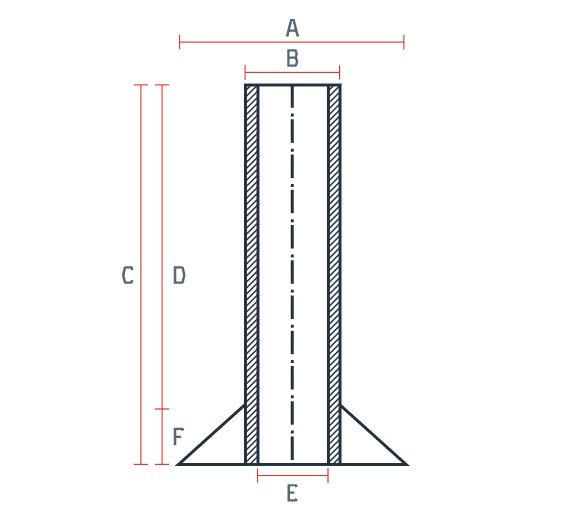

Kingspool
TECHNICAL DATA SHEET
TYPE
DIMENSIONS
KINGSPOOL
A = WIDTH
80 mm
B = INTERNAL WIDTH
28 mm
C = HEIGHT
140 mm
D = INTERNAL HEIGHT
115 mm
E = INNER HOLE
25 mm
F = FLANGE HEIGHT
25 mm
